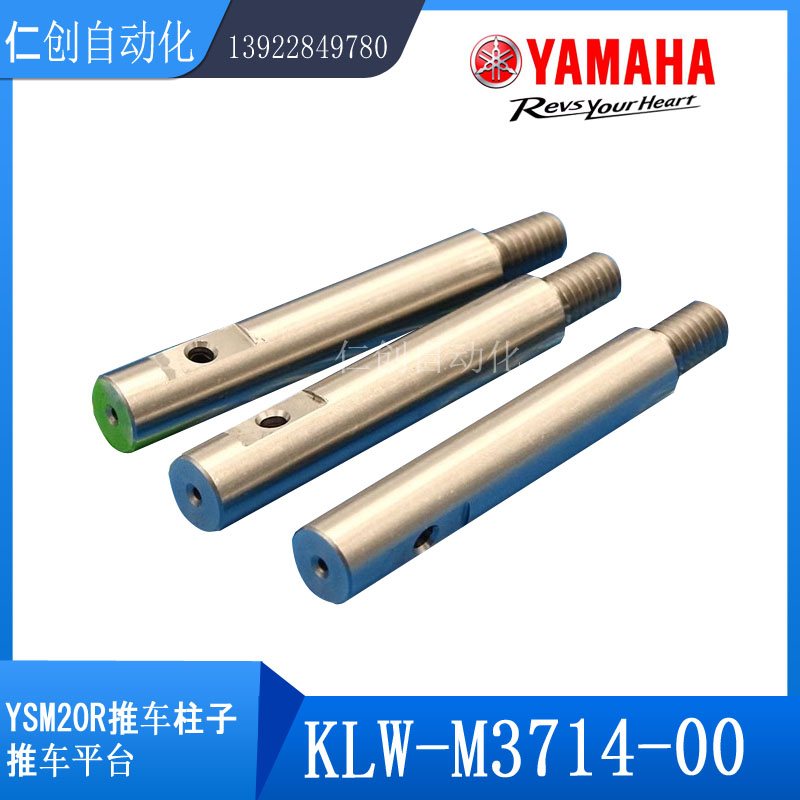

雅馬哈貼片機YSM20R推車平臺柱子/支柱KLW-M3714-00 PIN,MARK
NO Parts_No. Parts_Name Q_ty Remarks Compati Revision_No._date
1 90112-2AJ006 BOLT, HEX.SOCKET HEAD 4 2 90990-01J039 BOLT HEX,SOCKET HEAD 2 3 90990-12J001 SCREW, BIN. HEAD W/W 6 4 91312-03010 BOLT HEX,SOCKET HEAD 4 5 91312-03018 BOLT HEX,SOCKET HEAD 7 6 91312-04006 BOLT HEX,SOCKET HEAD 4 7 91312-04012 BOLT HEX,SOCKET HEAD 2 8 91312-05020 BOLT HEX,SOCKET HEAD 4 9 91312-06012 BOLT HEX,SOCKET HEAD 6 10 98702-03006 SCREW,FLAT HEAD 28 11 98902-03006 SCREW BINDING HEAD 12 12 99480-04008 PIN,PARALLEL 4 13 KHY-M349J-40 LABEL,INDICATOR 1 14 KHY-M371R-00 RAIL GUIDE 12P 2 15 KHY-M379L-00 LABEL,LED 1 16 KHY-M37E1-00 LIGHT GUIDE 4 17 KKG-M371A-01 PLATE,FRONT 1 18 KKG-M371B-00 SHAFT GUIDE 1 19 KKG-M371R-00 RAIL GUIDE 12P 1 20 KKG-M373L-00 LABEL,FEEDER 32-12P 2 21 KLW-M3701-01 BASE,FES 1 22 KLW-M3702-00 BUSH 2 23 KLW-M3703-00 PLATE,IND 1 1 24 KLW-M3704-00 BRKT.,BOARD 1 25 KLW-M370F-02 BLOCK,CONNECTOR 2 26 KLW-M370G-00 COVER,CONNECTOR 4 27 KLW-M3711-00 BLOCK,COVER 2 28 KLW-M3712-01 COVER,TAPE GUIDE 1 29 KLW-M3713-00 HOLDER,PIN 2 30 KLW-M3714-00 PIN,MARK 2 31 KLW-M3741-00 LABEL,LED POSI. 1 32 KLW-M37AA-00 FES32 BASE ASSY. 1 33 KLW-M37AB-00 INDICATOR ASSY. 1 34 KLW-M37AF-00 BANK COVER ASSY. 1 35 99480-04010 PIN,PARALLEL 1 36 99480-06012 PIN,PARALLEL 1 37 KLW-M66R4-00 HNS,FES.CUNET 1 38 KLW-M66R5-00 HNS,FES PWR 1 39 KLW-M4476-01 FDR.CTRL.BOARD ASSY
